KLD-PBline-X Series
Compact Busway
Transcending the limitations of traditional cables, it offers superior electrical performance, mechanical strength, and installation flexibility, which is widely used in various large-scale buildings and industrial facilities.

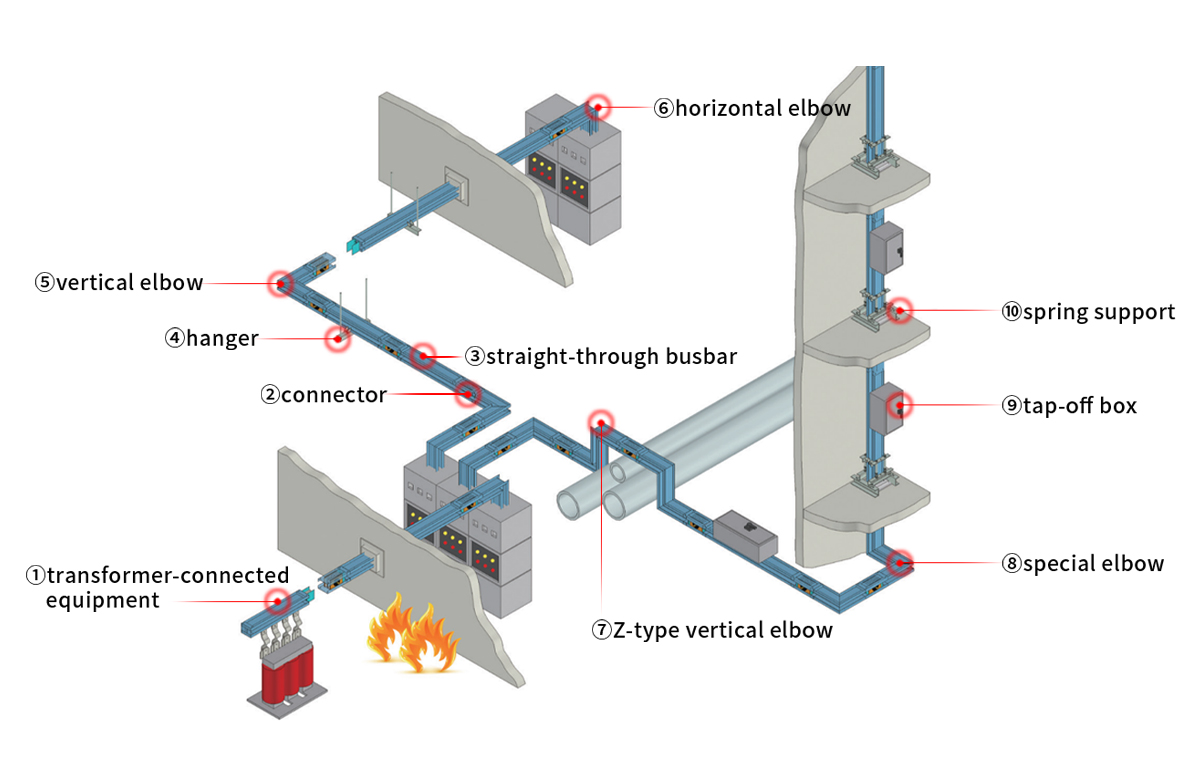

The KLD-PBline-X series low-voltage compact busway is a modern power distribution solution specifically designed for high-current, demanding power transmission and distribution scenarios. The product complies with GB/T7251 and IEC 61439 standards, featuring a rated operational voltage of 1000V, a rated frequency of 50/60Hz, a rated current of 400~6300A, and tap-off box currents of 10~1250A. The ingress protection can reach up to IP66 according to user’s requirements, which is suitable for various power supply systems including three-phase three-wire, three-phase four-wire, and three-phase five-wire systems. Also, it can be widely applied in important places such as large commercial plazas, high-rise buildings, intelligent buildings, stadiums, industrial plants, and hospitals. Its compact insulation structure enables closely arranged conductive bars to be encapsulated as a whole with high-performance insulation materials. With its high reliability, excellent heat dissipation, and convenient installation, the product serves as an ideal alternative to traditional cable-based power distribution solution.
As the "arteries" for power transmission, the performance and reliability of the busway determine the efficiency and safety of the distribution network. The KLD-PBline-X series compact busway is precisely the highly efficient solution that meets this core requirement.
| Rated current | 400A | 630A | 800A | 1000A | 1250A | 1600A | 2000A | 2500A | 3200A | 4000A | 5000A | 6300A |
| Rated operational voltage (Ue) | 400v~1000v | |||||||||||
| Rated insulation voltage (Ui) | 5690v~1000v | |||||||||||
| Rated impulse withstand voltage (Uimp) | 30kA | 30kA | 30kA | 30kA | 30kA | 80kA | 80kA | 80kA | 80kA | 120kA | 120kA | 120kA |
| Rated peak short-circuit current（Ipk） | 63kA | 63kA | 63kA | 63kA | 63kA | 176kA | 176kA | 176kA | 176kA | 264kA | 264kA | 264kA |
| Enclosure ingress protection | IP42/IP54/IP55/IP65/IP66 | |||||||||||
| Pollution degree | Ⅲ | |||||||||||
| Ambient operating temperature | -5°C to 40°C, 24-hour average not exceeding 35°C | |||||||||||
| Installation site altitude | ≤ 2000m | |||||||||||
| Flame propagation prevention | Supported | |||||||||||
| Enclosure Material | Aluminum alloy profile | |||||||||||
| Enclosure surface treatment | Electrostatic spraying with epoxy resin powder | |||||||||||
| Conductor material | Copper | |||||||||||
| Conductor surface treatment | Tin-plated / silver-plated | |||||||||||
| Insulation | Polyester film, class B 130°C (Class H customizable) | |||||||||||
Rated current：400A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：30kA
Rated peak short-circuit current（Ipk）：63A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：630A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：30kA
Rated peak short-circuit current（Ipk）：63A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：800A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：30kA
Rated peak short-circuit current（Ipk）：63A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：1000A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：30kA
Rated peak short-circuit current（Ipk）：63A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：1250A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：30kA
Rated peak short-circuit current（Ipk）：63A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：1600A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：80kA
Rated peak short-circuit current（Ipk）：176A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：2000A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：80kA
Rated peak short-circuit current（Ipk）：176A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：2500A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：80kA
Rated peak short-circuit current（Ipk）：176A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：3200A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：80kA
Rated peak short-circuit current（Ipk）：176A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：4000A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：120kA
Rated peak short-circuit current（Ipk）：264A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：5000A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：120kA
Rated peak short-circuit current（Ipk）：264A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
Rated current：6300A
Product executive standard：GB/T 7251.6-2015
Rated frequency：50/60Hz
Rated operational voltage (Ue）：400v~1000v
Rated insulation voltage (Ui)：690v~1000v
Rated impulse withstand voltage (Uimp)：8kv~12kv
Rated short-time withstand current（Icw）：120kA
Rated peak short-circuit current（Ipk）：264A
Enclosure ingress protection：IP42/IP54/IP55/IP65/IP66
Pollution degree：Ⅲ
Ambient operating temperature：-5°C to 40°C, 24-hour average not exceeding 35°C
Installation site altitude：≤ 2000m
Flame propagation prevention：Supported
Enclosure Material：Aluminum alloy profile
Enclosure surface treatment：Electrostatic spraying with epoxy resin powder
Conductor material：Copper
Conductor surface treatment：Tin-plated / silver-plated
Insulation：Polyester film, class B 130°C (Class H customizable)
