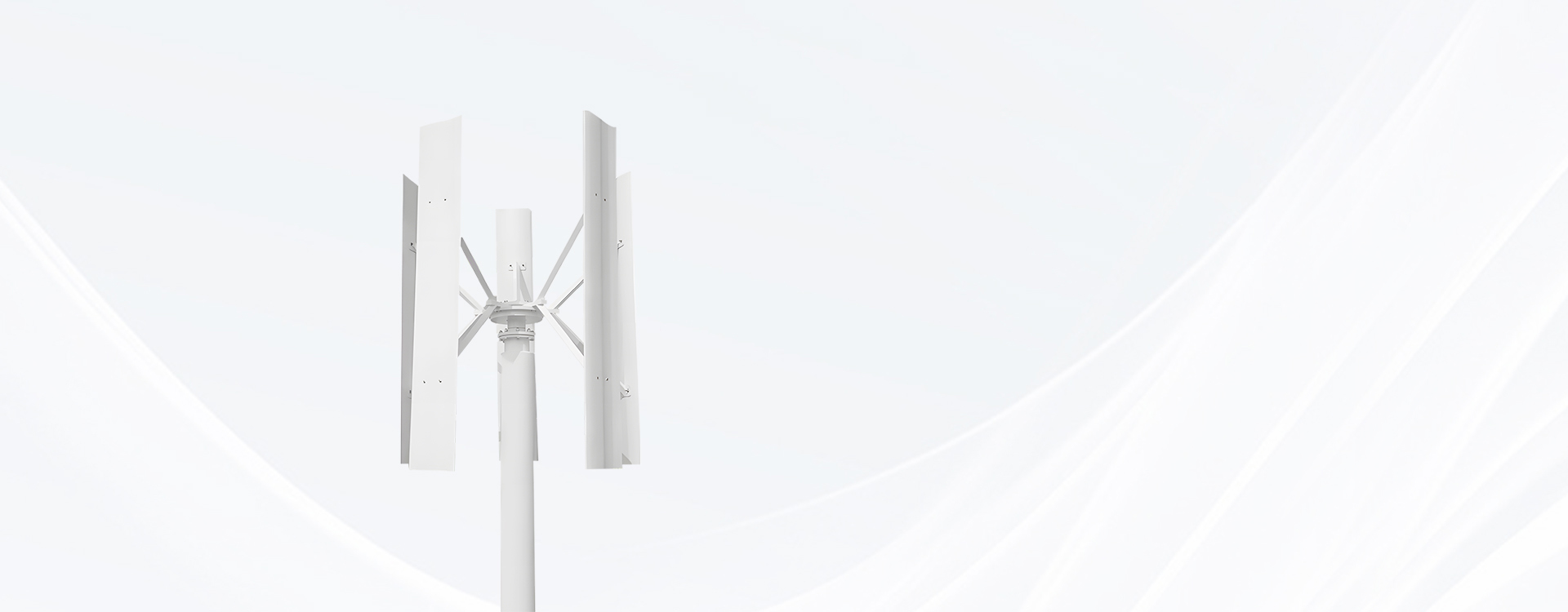

KLD-WTV SERIES
VERTICAL AXIS WIND TURBINE
100W-20kW
Compatible
Simple
Reliable
KLD-WTV SERIES
VERTICAL AXIS WIND TURBINE
100W-20kW

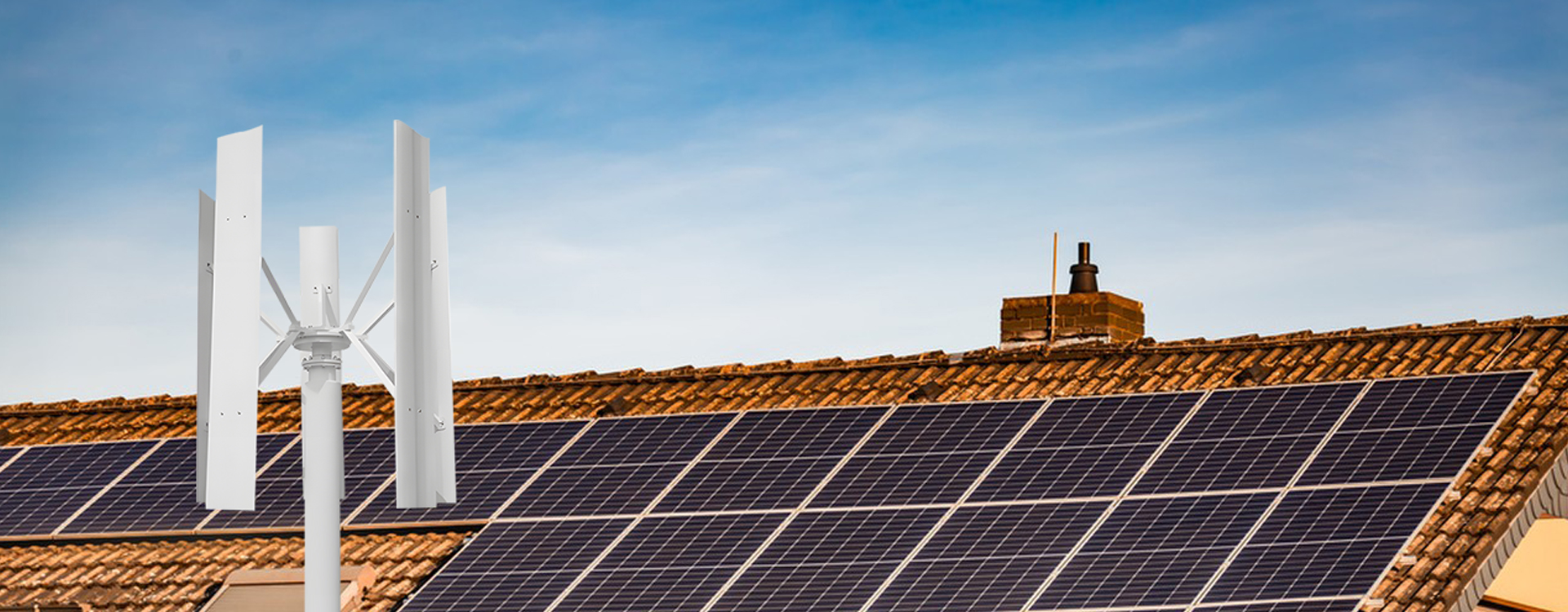

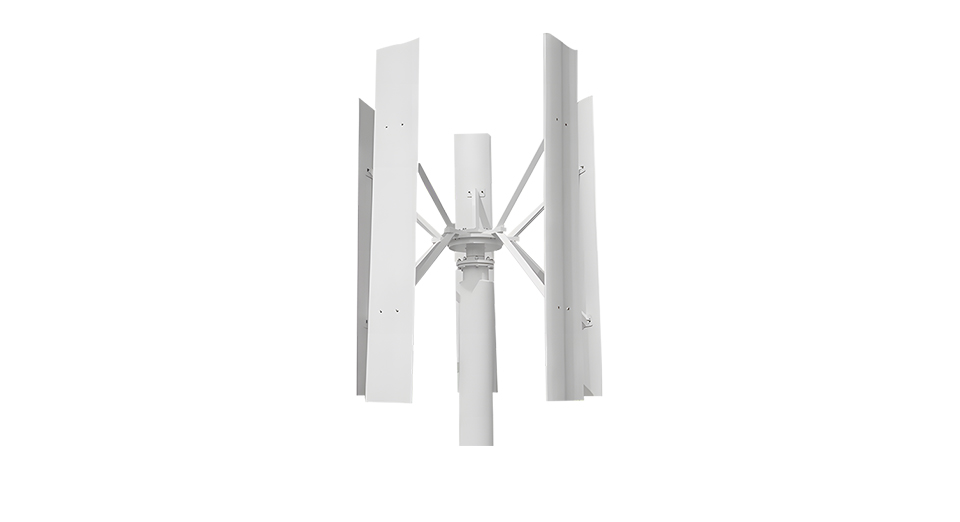

KLD-WTV series vertical axis wind turbine is in the power range of 100W-20kW and its rotation axis is perpendicular to the ground. Compared with horizontal axis wind turbines, vertical axis wind turbines do not need to face the wind when the wind is changing its direction, so they are simpler in structural design and reduce the gyroscopic force when the wind turbine is facing the wind. Vertical axis wind turbines usually have symmetrical blades that can receive wind from any direction, making them suitable for places where the wind direction is always changing.
Made of high quality alloy steel with customized bearing rotor to ensure reliability and durability.
Optimized fan operation to reduce vibration and wind noise, effectively enhancing the mute effect.
The core part is equipped with a special fan impeller to increase the auxiliary kinetic energy,optimize the start-up wind speed and improve the conversion efficiency.
Intelligent tracking of wind power generation efficiency, precise regulation of voltage and current.

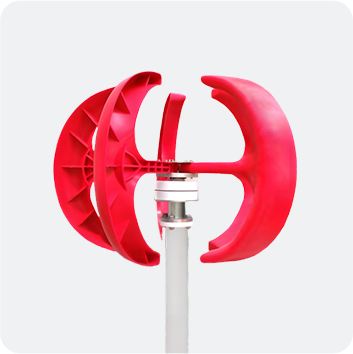

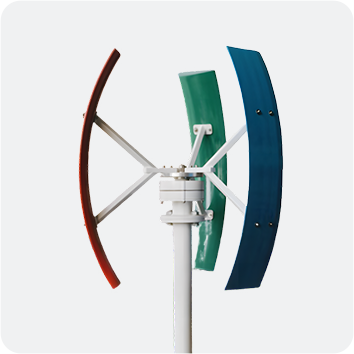

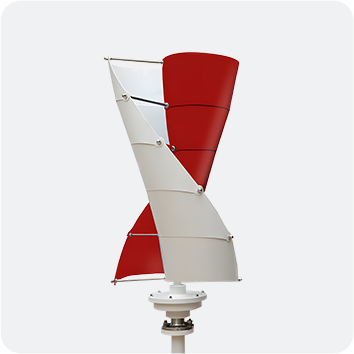

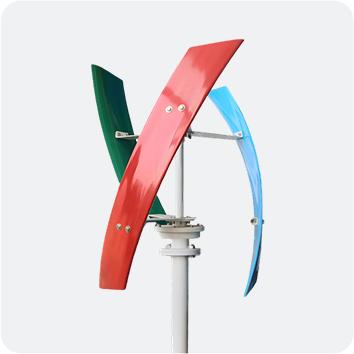

KLD series small wind turbines have a variety of appearance design, a wide range of shapes and styles to choose from, so as to meet needs of different scenarios, making choice become more flexible and diverse.
| Model | KLD-WTV100W | KLD-WTV500W | KLD-WTV800W | KLD-WTV1kW | KLD-WTV10kW | KLD-WTV20kW | |
| Rated power | 100W | 500W | 800W | 1kW | 10kW | 20kW | |
| Maximum power | 200W | 600W | 1kW | 1.5kW | 15kW | 30kW | |
| Rated voltage | 12V/24V | 24V/48V | 24V/48V | 24V/48V | 220V/380V | 220V/380V | |
| Start-up wind speed | 2m/s | 2m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | |
| Rated wind speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | |
| Safe wind speed | 30m/s | 35m/s | 35m/s | 40m/s | 45m/s | 45m/s | |
| Number of blades | 3pieces/5pieces | ||||||
| Blade Material | alloy steel | Aluminum alloy | |||||
| Generator | Three phase AC permanent magnet synchronous generator | Three phase AC permanent magnet synchronous generator | |||||
| Braking method | Electromagnetic brake | ||||||
| Operating temperature | ﹣40℃~﹢80℃ | ||||||
Note: material download page for detailed parameter
Rated power：100W
Maximum power：200W
Rated voltage：12V/24V
Start-up wind speed：2m/s
Rated wind speed：12m/s
Safe wind speed：30m/s
Number of blades：3pieces/5pieces
Blade Material：alloy steel
Generator：Automatic upwind three-phase permanent magnet synchronous AC generator
Braking method：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：500W
Maximum power：600W
Rated voltage：24V/48V
Start-up wind speed：2m/s
Rated wind speed：12m/s
Safe wind speed：35m/s
Number of blades：3pieces/5pieces
Blade Material：alloy steel
Generator：Automatic upwind three-phase permanent magnet synchronous AC generator
Braking method：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：800W
Maximum power：1kW
Rated voltage：24V/48V
Start-up wind speed：2.5m/s
Rated wind speed：12m/s
Safe wind speed：35m/s
Number of blades：3pieces/5pieces
Blade Material：alloy steel
Generator：Automatic upwind three-phase permanent magnet synchronous AC generator
Braking method：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：1kW
Maximum power：1.5kW
Rated voltage：24V/48V
Start-up wind speed：2.5m/s
Rated wind speed：12m/s
Safe wind speed：40m/s
Number of blades：3pieces/5pieces
Blade Material：alloy steel
Generator：Automatic upwind three-phase permanent magnet synchronous AC generator
Braking method：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：10kW
Maximum power：15kW
Rated voltage：220V/380V
Start-up wind speed：2.5m/s
Rated wind speed：12m/s
Safe wind speed：45m/s
Number of blades：3pieces/5pieces
Blade Material：Aluminum alloy
Generator：Three phase AC permanent magnet synchronous generator
Braking method：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
Rated power：20kW
Maximum power：30kW
Rated voltage：220V/380V
Start-up wind speed：2.5m/s
Rated wind speed：12m/s
Safe wind speed：45m/s
Number of blades：3pieces/5pieces
Blade Material：Aluminum alloy
Generator：Three phase AC permanent magnet synchronous generator
Braking method：Electromagnetic brake
Operating temperature：﹣40℃~﹢80℃
